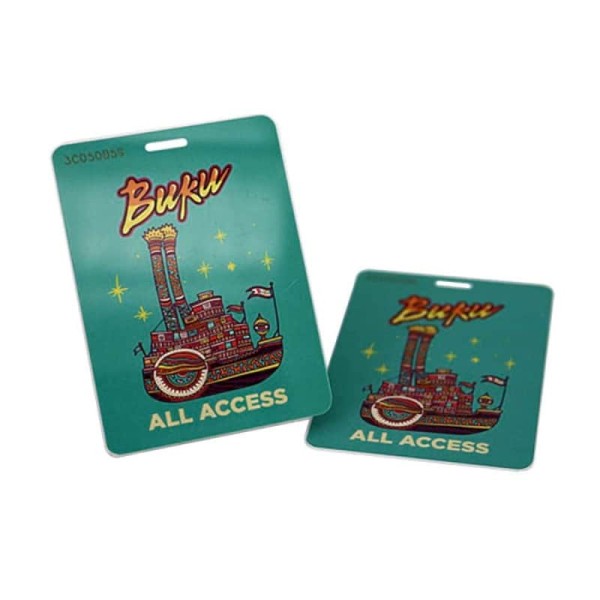

UHF PVC RFID Card with Lanyard Hole For Event(80*110MM)
UHF PVC RFID Card with Lanyard Hole For Event(80*110MM)
Basic Feature
Nowadays, Irregular UHF PVC RFID Card is useful tool in retail, logistics, healthcare and a handful of other enterprise sectors.
RFID laminates are widely used in Event access control, Transportation management, Activity Ticketing as well.
RFID Key Card size canbe customized upon request.
Parameters | |
Material | PVC/ Plastic |
Size | 80*110MM Or Customized |
Chip | LF:TK4100,EM4200,EM4305, T5577 etc. HF:ISO14443A--NTAG213/215/216,MF 1K S50/4K S70,FM11RF08,MF DESfire EV1 2K/4K/8K, TOPAZ512,MF Ultralight/Ultralight C,MF Plus S/X(2K&4K) etc. ISO15693---I Code SLI/I Code SLI-X/I Code SLI-S/Ti2048 UHF:ALIEN H3/H4,Monza 4D/4E/4QT,Monza5,U Code 7 etc. |
Printing Options | Full color offset printing, Silk-screen printing, etc. |
Surfaces | Frosted, Glossy, Matte Finishing |
Crafts Available | Barcode, Scratch off panel, Signature panel, Spray number, Laser number, Embossing, etc. |
Shipping Details | Generally, 3 days for DHL/FedEx/UPS, 10 days for air shipping,18 days for sea shipping. |
Payment Terms | TT,PayPal, WESTUNION, L/C |
Common Chip Types | Protocol | Capacity | Anti-collision | Function |
Available 125KHz Chip | ||||
TK4100 | / | 64 bit | No | Read Only |
EM4200 | / | 128 bit | No | Read Only |
EM4305 | / | 512 bit | No | Read/Write |
T5577 | / | 330 bits | No | Read/Write |
Available 13.56MHz Chip | ||||
NTAG 213 | ISO14443A | 180 byte | No | Read/Write |
NTAG 215 | ISO14443A | 540 byte | No | Read/Write |
NTAG 216 | ISO14443A | 924 byte | No | Read/Write |
MIFARE Classic 1K | ISO14443A | 1 KB | No | Read/Write |
MIFARE Classic 4K | ISO14443A | 4 KB | No | Read/Write |
MIFARE Plus S 1K | ISO14443A | 2 KB/4 KB | No | Read/Write |
MIFARE Ultralight EV1 | ISO14443A | 48 byte | No | Read/Write |
MIFARE Ultralight C | ISO14443A | 144 byte | No | Read/Write |
ICODE SLIX | ISO15693 | 896 bit | Yes | Read/Write |
Available 860-960MHz Chip | ||||
Alien H3 | ISO18000-6C | 512 bit | Yes | Read/Write |
Other chips are also available. | ||||
NTAG are registered trademarks of NXP B.V. and are used under license.ICODE are registered trademarks of NXP B.V. and are used under license.MIFARE and MIFARE Classic are trademarks of NXP B.V.MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.MIFARE and MIFARE Plus have registered trademarks of NXP B.V. and are used under license. |
Common Package
Note:
Volume
Chip Card: 200pcs cards with chips in one box, 2000/3000pcs per carton
Common Card: 250pcs per box, 2500/3000pcs per carton
Inkjet White Card: 230pcs per box, 3450pcs per carton
Weight
Chip Card: 6.5KG for 1000pcs
Common Card: 6.0KG for 1000pcs
Carton Size
49*23*16CM (for 2000/2500pcs)
49*23*20CM (for 3000pcs)
Special demands for packing available.
Test Color
The high precision color difference meter is used to ensure the consistency of the finished product and the sample.
