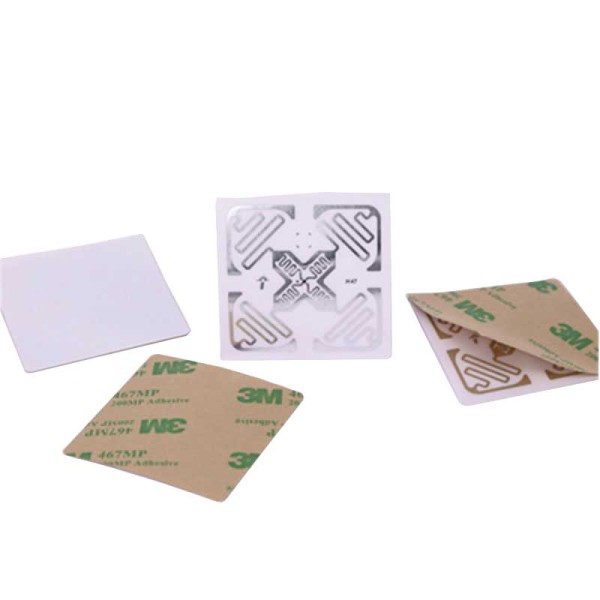

3M Adhesive UHF RFID Label Monza4QT H47
3M Adhesive UHF RFID Label Monza4QT H47
Basic Feature
UHF RFID labels are widely used in personnel management & Science, materials management; supply chain management&leasing and library management; retail supply chain management & anti-counterfeit protection, asset management&Factory automation, parcel, handling, fashion, consumer, enterprise and campus card, bus card, highway fees, parking, district management micropayment, e-purse and other fields.
Other size and type are available on request!
Our Inlay are covered in the surface material to form the final label. These are some materials:
1. Coated Paper: Low cost, easy to print on.
2. PET: Waterproof, heatproof, environmental protection.
3. PVC: Waterproof, corrosion resistance, high-temperature resistance.
4. Normal Double-sided adhesive: Robust, widely used, and cheaper than 3M Glue.
5. 3M Glue: Higher cost but strong viscosity, good temperature tolerance; anti-corrosion.
6. Electrostatic adhesive: Electrostatic prevention, high-temperature resistance, strong water resistance
For die-cutting, the minimum size should be 4mm bigger than inlay normally.
| Parameters | |
| Material | PVC/PET |
| Size | 50*50MM |
| Chip | Impinj Monza4QT |
| Frequency | 860-960MHz |
| Memory | 512 Bits |
| Protocol | ISO18000-6C/EPC GEN2 |
| Reading Distance | Up to 3M |
| Shipping Details | Generally, 3 days for DHL/FedEx/UPS, 10 days for air shipping,18 days for sea shipping. |
| Payment Terms | TT, PayPal, WEST UNION, L/C |
| Common Chip Types | Protocol | Capacity | Anti-collision | Function |
| Available 125KHz Chip | ||||
| TK4100 | / | 64 bit | No | Read Only |
| EM4200 | / | 128 bit | No | Read Only |
| EM4305 | / | 512 bit | No | Read/Write |
| T5577 | / | 330 bits | No | Read/Write |
| Available 13.56MHz Chip | ||||
| Ntag213 | ISO14443A | 180 byte | No | Read/Write |
| Ntag215 | ISO14443A | 540 byte | No | Read/Write |
| Ntag216 | ISO14443A | 924 byte | No | Read/Write |
| MF Classic 1K | ISO14443A | 1KB | No | Read/Write |
| MF Classic 4K | ISO14443A | 4KB | No | Read/Write |
| MF Plus S 1K | ISO14443A | 2KB/4KB | No | Read/Write |
| MF Ultralight EV1 | ISO14443A | 48 byte | No | Read/Write |
| MF Ultralight C | ISO14443A | 144 byte | No | Read/Write |
| ICODE SLIX | ISO15693 | 896 bit | Yes | Read/Write |
| Available 860-960MHz Chip | ||||
| Alien H3 | ISO18000-6C | 512 bit | Yes | Read/Write |
| Other chips are also available. | ||||
| Ntag are registered trademarks of and are used under license.ICODE are registered trademarks of and are used under license.MF and MF Classic are trademarks of MF and MF Ultralight are registered trademarks of and are used under license.MF and MF Plus have registered trademarks of and are used under license. | ||||
Common Size
Common Package
Note:
Volume
1000 pcs /2000 pcs /5000 pcs in one roll,
10,000 pcs /50,000 pcs /100,000pcs per carton
Weight
About 2KG for 1000 pcs
Carton Size
49*23*20 cm
49*23*26 cm
Special demands for packing available.
Applications
Available Applications:
Asset management, production line management, supply chain management, warehousing management, luggage tag，anti-counterfeiting management (tobacco, liquor, medicine), retailmanagement, vehicle management, etc.
