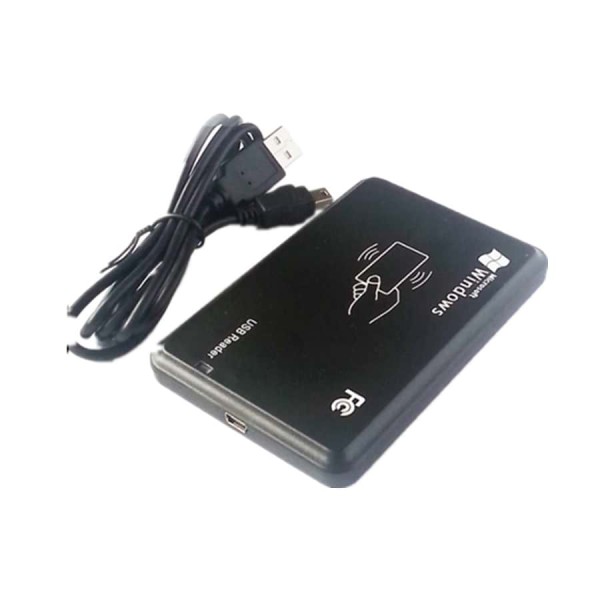

125KHz LF Reader for Access Control System
Product Code: xyt-106
125KHz LF Reader for Access Control System
5
1
125KHz LF Reader for Access Control System
Normally, the ID Card has 18 digital numbers,like; " 0008139804;124,13340 "; But for customized, here is different ID format like 18 digital, last 8 digital or Hexadecimal. We have the 125KHz special reader which can choose different ID format like as below.
| Format | Output |
| 10 no.in D | 0008139804 |
| 10 no.in reverse | 0473201664 |
| 8 no.in HEX | 007c341c |
| 8 no.in HEX reverse | c143c700 |
| 8 no.in D | 08139804 |
| 00+8 no.in D | 0008139804 |
| 5 no.in D | 13340 |
| 18 no.in D | 000813980412413340 |
| 13 no.in D | 0000008139804 |
| 10 no.in HEX | 00007c341c |
| Technical parameters | |
| Working Frequency | 125KHz |
| Reading Distance | 10cm |
| Output Format | Hexadecimal, Decimal, WG26 |
| Software | Yes |
| Working temperature | -40℃ ～ +80℃ |
| Store temperature | -60℃ ～ +85℃ |
| Weight | 21g |
| Size | 110*70*11mm |
