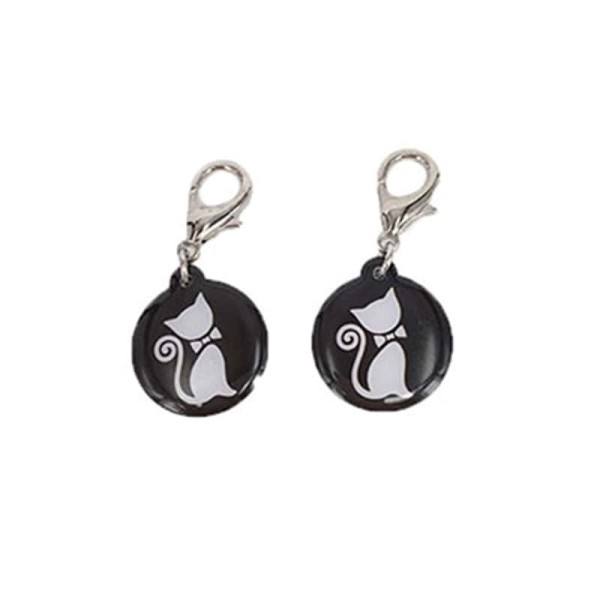

dome shape waterproof epoxy NFC tag
Product Code: xyt-261
dome shape waterproof epoxy NFC tag
3
1
dome shape waterproof epoxy NFC tag
Basic Feature
NFC Sticker is widely used for Mobile Phone payment/Access Control & Security Management/Music event etc.
| Parameters | |
| Material | Epoxy+PVC |
| Size | Square: 25*25MM/35*35MM/45*45MM etc or customized Circle: Dia 25MM/30MM/35MM etc or customized Rectangle: 27*30MM/50*30MM/40*20MM etc or customized |
| Chip | NTAG213 |
| Frequency | 13.56Mhz |
| Memory | 7 byte/144 bytes user programmable read/write memory |
| Printing Options | Offset printing, Silk-screen printing，pantone printing, etc. |
| Crafts Available | Logo Printing,Anti-Metal + 3M Sticker; Craft: Data Encoding ,Number Printing etc |
| Shipping Details | Generally, 3 days for DHL/FedEx/UPS, 10 days for air shipping,18 days for sea shipping. |
| Payment Terms | TT, PayPal, WEST UNION, L/C |
| Common Chip Types | Protocol | Capacity | Anti-collision | Function |
| Available 125KHz Chip | ||||
| TK4100 | / | 64 bit | No | Read Only |
| EM4200 | / | 128 bit | No | Read Only |
| EM4305 | / | 512 bit | No | Read/Write |
| T5577 | / | 330 bits | No | Read/Write |
| Available 13.56MHz Chip | ||||
| NTAG 213 | ISO14443A | 180 byte | No | Read/Write |
| NTAG 215 | ISO14443A | 540 byte | No | Read/Write |
| NTAG 216 | ISO14443A | 924 byte | No | Read/Write |
| MIFARE Classic 1K | ISO14443A | 1 KB | No | Read/Write |
| MIFARE Classic 4K | ISO14443A | 4 KB | No | Read/Write |
| MIFARE Plus S 1K | ISO14443A | 2 KB/4 KB | No | Read/Write |
| MIFARE Ultralight EV1 | ISO14443A | 48 byte | No | Read/Write |
| MIFARE Ultralight C | ISO14443A | 144 byte | No | Read/Write |
| ICODE SLIX | ISO15693 | 896 bit | Yes | Read/Write |
| Available 860-960MHz Chip | ||||
| Alien H3 | ISO18000-6C | 512 bit | Yes | Read/Write |
| Other chips are also available. | ||||
| NTAG are registered trademarks of NXP B.V. and are used under license.ICODE are registered trademarks of NXP B.V. and are used under license.MIFARE and MIFARE Classic are trademarks of NXP B.V.MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.MIFARE and MIFARE Plus have registered trademarks of NXP B.V. and are used under license. | ||||
Custom Shapes:
Common Package:
Note:
Box size:21.5*9*5.5CM,100pcs/200pcs in one box,5 boxes in the carton, (carton size, 31*23*10CM),15 boxes in the carton, (carton size, 49*23*20CM), 20boxes in the carton, (carton size, 49*23*26CM).
Special demands for packing available.
Applications:
Access Control, Event Festival Ticket, Pet Dog, SPA Swimming pool, Security Control, Lock Key
