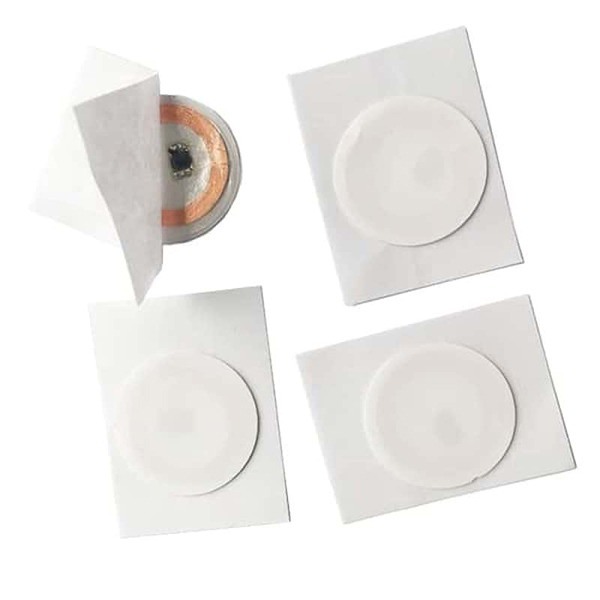

CET5577 Chip LF RFID Tag
CET5577 Chip LF RFID Tag Descriptions:
The LF band covers frequencies from 30KHz to 300KHz. Typically LF RFID systems operate at 125KHz, although there are some that operate at 134KHz.
CET5577 Chip LF RFID Tag provides a short read range no more than 8cm, and has slower read speed than the higher frequencies, but is not very sensitive to radio wave interference.
The applications of CET5577 Chip LF RFID Tag include access control and livestock tracking.
We can provide customized products for you, such as color, size, style and so on.
Our Inlay is covered in the surface material to form the final label. These are some materials:
1. Coated Paper: Low cost, easy to print on.
2. PET: Waterproof, heatproof, environmental protection.
3. PVC: Waterproof, corrosion resistance, high-temperature resistance.
4. Normal Double-sided adhesive: Robust, widely used, and cheaper than 3M Glue.
5. 3M Glue: Higher cost but strong viscosity, good temperature tolerance & anti-corrosion.
6. Electrostatic adhesive: Electrostatic prevention, high-temperature resistance, strong water resistance
For die-cutting, the minimum size should be 4mm bigger than inlay normally.
| Parameters | |
| Material | Paper or PVC |
| Size | 45x45mm/30x30mm, Diameter 25mm/30mm/35mm |
| Chip | T5577 |
| Memory | 363 bits |
| Protocol | ISO11784/11785 |
| Crafts Available | CMKY Logo Printing/Serial Number Printing, Anti-metal, URL Encode, Lock, QRcode, Barcode |
| Shipping Details | Generally, 3 days for DHL/FedEx/UPS, 10 days for air shipping,18 days for sea shipping. |
| Payment Terms | TT, PayPal, WEST UNION, L/C |
| Common Chip Types | Protocol | Capacity | Anti-collision | Function |
| Available 125KHz Chip | ||||
| TK4100 | / | 64 bit | No | Read Only |
| EM4200 | / | 128 bit | No | Read Only |
| EM4305 | / | 512 bit | No | Read/Write |
| T5577 | / | 330 bits | No | Read/Write |
| Available 13.56MHz Chip | ||||
| Ntag213 | ISO14443A | 180 byte | No | Read/Write |
| Ntag215 | ISO14443A | 540 byte | No | Read/Write |
| Ntag216 | ISO14443A | 924 byte | No | Read/Write |
| MF Classic 1K | ISO14443A | 1KB | No | Read/Write |
| MF Classic 4K | ISO14443A | 4KB | No | Read/Write |
| MF Plus S 1K | ISO14443A | 2KB/4KB | No | Read/Write |
| MF Ultralight EV1 | ISO14443A | 48 byte | No | Read/Write |
| MF Ultralight C | ISO14443A | 144 byte | No | Read/Write |
| ICODE SLIX | ISO15693 | 896 bit | Yes | Read/Write |
| Available 860-960MHz Chip | ||||
| Alien H3 | ISO18000-6C | 512 bit | Yes | Read/Write |
| Other chips are also available. | ||||
| Ntag are registered trademarks of and are used under license.ICODE are registered trademarks of and are used under license.MF and MF Classic are trademarks of MF and MF Ultralight are registered trademarks of and are used under license.MF and MF Plus have registered trademarks of and are used under license. | ||||
Product Details
Common Package
Note:
Volume
1000 pcs /2000 pcs /5000 pcs in one roll,
10,000 pcs /50,000 pcs /100,000pcs per carton
Weight
About 2KG for 1000 pcs
Carton Size
49*23*20 cm
49*23*26 cm
Special demands for packing available.
Applications
Available Applications:
virtually on any surface, metal, plastic, wood, paper, used for animal tracking, library management, mobile phone payment, anti-fake wine management, etc.
