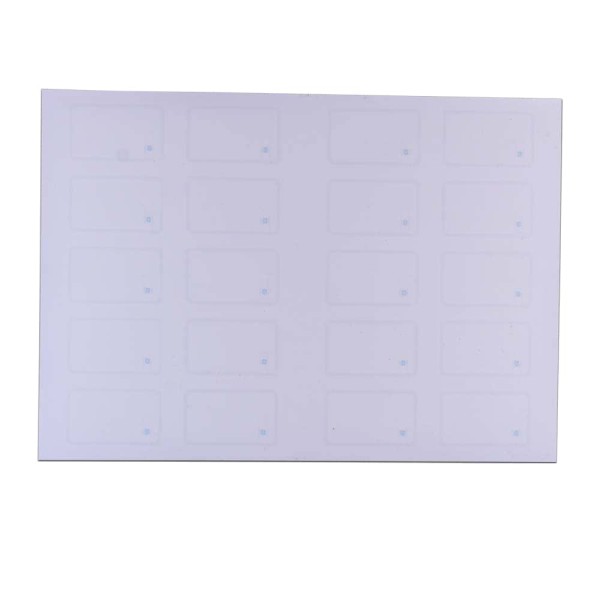

4x5 F08 MF 1K PVC Inlay

Product Code: xyt-203


4x5 F08 MF 1K PVC Inlay

4x5 F08 MF 1K PVC Inlay Descriptions:

RFID Inlay Sheet is a special term in the smart card industry, referring to a kind of beforehand laminated products with multi-layer PVC sheets containing chip and wire circle together. Generally, it consists of two layers or three layers, and without any printing design on Surface.
4x5 F08 MF 1K PVC Inlay products are suited for a variety of Cards producing. An inlay is covered with different printing materials up and down, becoming colorful contactless Cards by being laminated again.
RFID Inlay Sheet is usually divided into two styles, dry inlay, and wet inlay. The dry inlay features continuous web, no adhesive, and wet inlay is die-cut web with adhesive.
4x5 F08 MF 1K PVC Inlay is a popular Inlay in our market. And our market is all around the world, including Korea, Japan, America, England, Netherland, Russia, South America, etc.


4x5 F08 MF 1K PVC Inlay Specifications:

  • Material: PVC
  • Chip: F08 MF 1K
  • Frequency: 13.56MHz
  • Memory: 1k
  • Layout Size: 4x5
  • Surface Craft: Matt/Brushed/Glossy
  • Protocol: ISO14443A
  • Read/Write: Both Available
  • Available Sheet Size: 310x468mm, 400x505mm, 490x650mm, A4 Size (210x297mm)
  • Thickness: 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.50mm for aluminum antenna 0.45mm, 0.50mm, 0.55mm, 0.60mm for brass antenna.
  • Available Layout: 2x5/4x5/5x5/4x6/4x7/4x8/3x6/3x7/3x8/6x8/4x10, etc
  • Other Chips Available, LF: EM4200, EM4305,TK4100, T5577 etc, HF: MF 1K S50/Fudan F08/MF 4K S70/I Code Sli/ Ultralight/Ntag213/Ntag213 etc.
  • Packaging: Carton size: 52*33*5.4cm, 100pcs/carton, 10kg/carton
