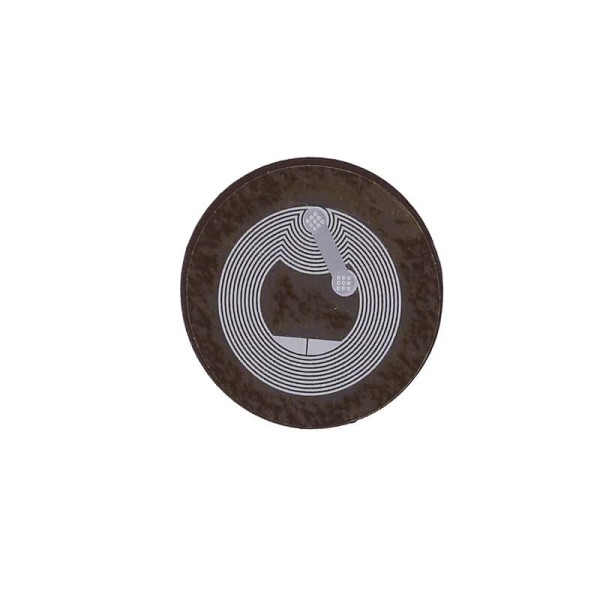

Custom Size Round NFC TAG
Custom Size Round NFC TAG Descriptions:
NFC is short for near field communication, which is developed from the integration of RFID and mutual-communication technology. The combination of inductive reader & card and point -to -point function on a single NFC chip enables the NFC device to complete identity recognition and data exchange within a short-range.
Custom Size Round NFC TAG utilizes fully the design innovation of high-tech, environmental protection, saving, and is a new era of science and technology achievements.
Round NFC TAG is widely used for loyalty systems, promotion, event management, access control system, Identity management, especially for mobile payment systems.
Our Inlay is covered in the surface material to form the final label. These are some materials:
1. Coated Paper: Low cost, easy to print on.
2. PET: Waterproof, heatproof, environmental protection.
3. PVC: Waterproof, corrosion resistance, high-temperature resistance.
4. Normal Double-sided adhesive: Robust, widely used, and cheaper than 3M Glue.
5. 3M Glue: Higher cost but strong viscosity, good temperature tolerance & anti-corrosion.
6. Electrostatic adhesive: Electrostatic prevention, high-temperature resistance, strong water resistance
For die-cutting, the minimum size should be 4 mm bigger than inlay normally.
Parameters | |
Material | Paper/PVC/PET |
Size | Dia 25mm, 25x25mm, 50x50mm, 35x35mm, 18x18mm, 50x50mm or custom |
Chip | MF 1K/F08, Icode Sli, ntag213/213/216, Topaz512, Ultralight/ Ultralight C, etc. |
Frequency | HF |
Protocol | ISO14443A / ISO15693 |
Printing Options | Full-color offset printing, Silk-screen printing, etc. |
Surfaces | Frosted, Glossy, Matte Finishing |
Crafts Available | Barcode, Scratch off panel, Signature panel, Spray number, Laser number, Embossing, etc. |
Shipping Details | Generally, 3 days for DHL/FedEx/UPS, 10 days for air shipping,18 days for sea shipping. |
Payment Terms | TT, PayPal, WEST UNION, L/C |
Common Chip Types | Protocol | Capacity | Anti-collision | Function |
Available 125KHz Chip | ||||
TK4100 | / | 64 bit | No | Read Only |
EM4200 | / | 128 bit | No | Read Only |
EM4305 | / | 512 bit | No | Read/Write |
T5577 | / | 330 bits | No | Read/Write |
Available 13.56MHz Chip | ||||
NTAG 213 | ISO14443A | 180 byte | No | Read/Write |
NTAG 215 | ISO14443A | 540 byte | No | Read/Write |
NTAG 216 | ISO14443A | 924 byte | No | Read/Write |
MIFARE Classic 1K | ISO14443A | 1 KB | No | Read/Write |
MIFARE Classic 4K | ISO14443A | 4 KB | No | Read/Write |
MIFARE Plus S 1K | ISO14443A | 2 KB/4 KB | No | Read/Write |
MIFARE Ultralight EV1 | ISO14443A | 48 byte | No | Read/Write |
MIFARE Ultralight C | ISO14443A | 144 byte | No | Read/Write |
ICODE SLIX | ISO15693 | 896 bit | Yes | Read/Write |
Available 860-960MHz Chip | ||||
Alien H3 | ISO18000-6C | 512 bit | Yes | Read/Write |
Other chips are also available. | ||||
NTAG are registered trademarks of , and are used under license.ICODE are registered trademarks of , and are used under license.MIFARE and MIFARE Classic are trademarks of ,MIFARE and MIFARE Ultralight are registered trademarks of , and are used under license.MIFARE and MIFARE Plus have registered trademarks of , and are used under license. |
Product Details
Common Package
Note:
Volume
1000 pcs /2000 pcs /5000 pcs in one roll,
10,000 pcs /50,000 pcs /100,000pcs per carton
Weight
About 2KG for 1000 pcs
Carton Size
49*23*20 cm
49*23*26 cm
Special demands for packing available.
Applications
Available Applications:
virtually on any surface, metal, plastic, wood, paper, used for animal tracking, library management, mobile phone payment, anti-fake wine management, etc.
SPECIFICATION:
Chip Specifications | |
Protocol Style | ISO14443A |
Chip Style | MF 1K/F08, Icode Sli, ntag213/213/216, Topaz512, Ultralight/ Ultralight C, etc. |
Frequency Range | HF |
General Specifications | |
Available Crafts | CMKY Logo Printing/Serial Number Printing, Anti-metal, URL Encode, Lock, QRcode, Barcode |
Reading Distance | 0-8 cm |
Material Style | PVC |
Weight Range | 1.5KG per 1000Pieces(Diameter 30mm) |
Size Numeric | Diameter 30mm |
Work Temperature | -25℃~+75℃ |
Chip Specifications | |
Protocol Style | ISO14443A |
Chip Style | MF 1K/F08, Icode Sli, ntag213/213/216, Topaz512, Ultralight/ Ultralight C, etc. |
Frequency Range | HF |
General Specifications | |
Available Crafts | CMKY Logo Printing/Serial Number Printing, Anti-metal, URL Encode, Lock, qrcode, Barcode |
Reading Distance | 0-8 cm |
Material Style | PVC |
Weight Range | 1.5KG per 1000Pieces(Diameter 30mm) |
Size Numeric | Diameter 30mm |
Work Temperature | -25℃~+75℃ |
